PHOTOBIO TX2 800W
PHOTOBIO TX2 800W high efficiency LED top light is great for:
Single Level, Greenhouse
Photon Flux
Power (W)
Efficacy
Yr. Warranty
S5 SPECTRUM

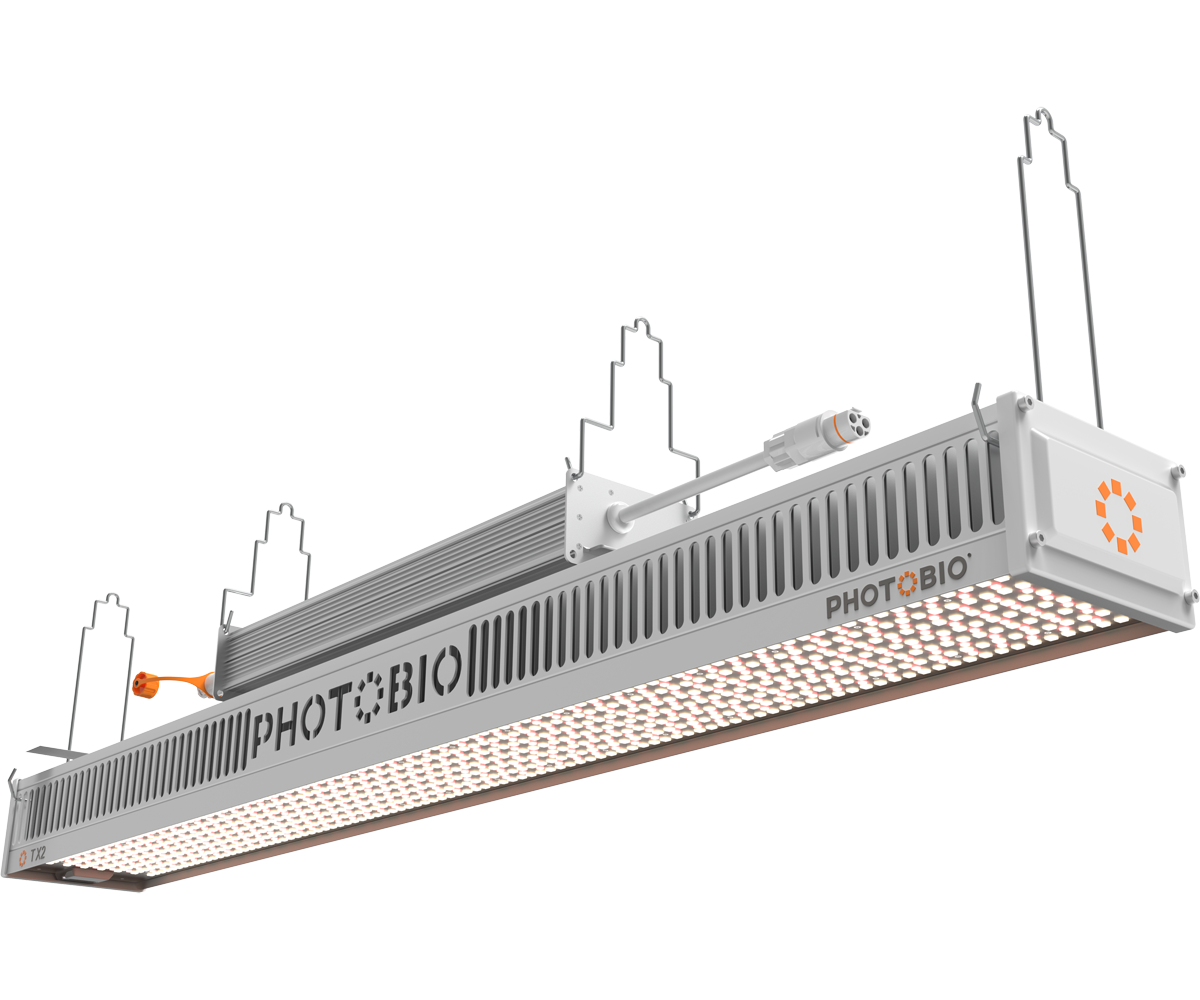

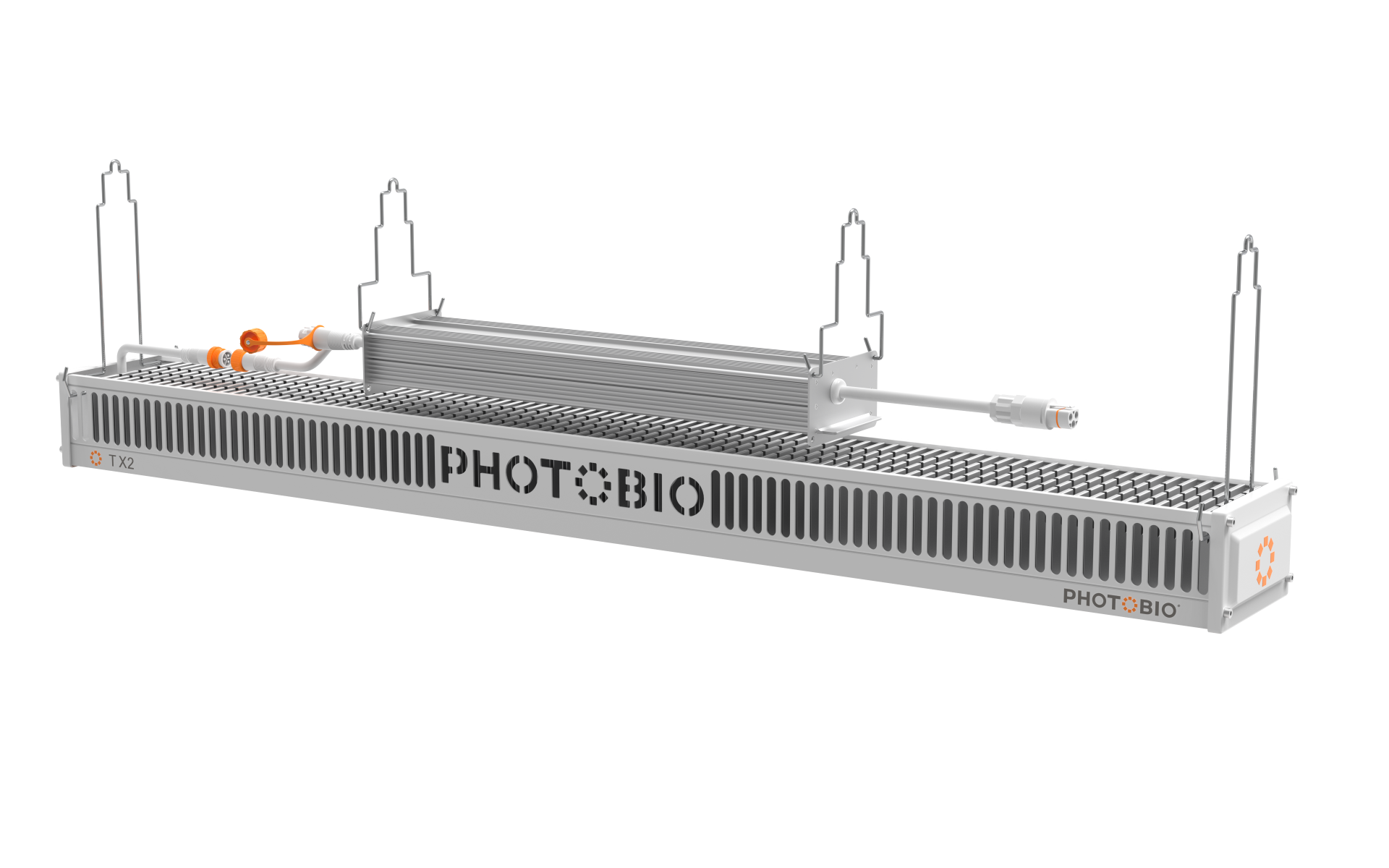

Introducing PHOTOBIO•TX2 – the latest innovation from PHOTOBIO, designed to revolutionize your growing experience. Our cutting-edge lighting solutions incorporate the latest technology to maximize energy efficiency and cost-effectiveness, helping growers achieve unparalleled production potential.
The TX2 Top Light raises the bar with 800 watts of power and a NEW S5 spectrum. PHOTOBIO Top Light LED Systems offer the perfect blend of advanced technology and practical functionality.
The PHOTOBIO•TX2 has been designed for greenhouse and single level applications. The thin linear profile minimizes sun interference in greenhouse applications while providing better canopy access when used indoors. The wide voltage range (208-480v) offers flexibility for commercial applications. The brand new heatsink design allows TX2 to achieve 18% weight reduction while providing efficient thermal management to support 38% more PPF output.

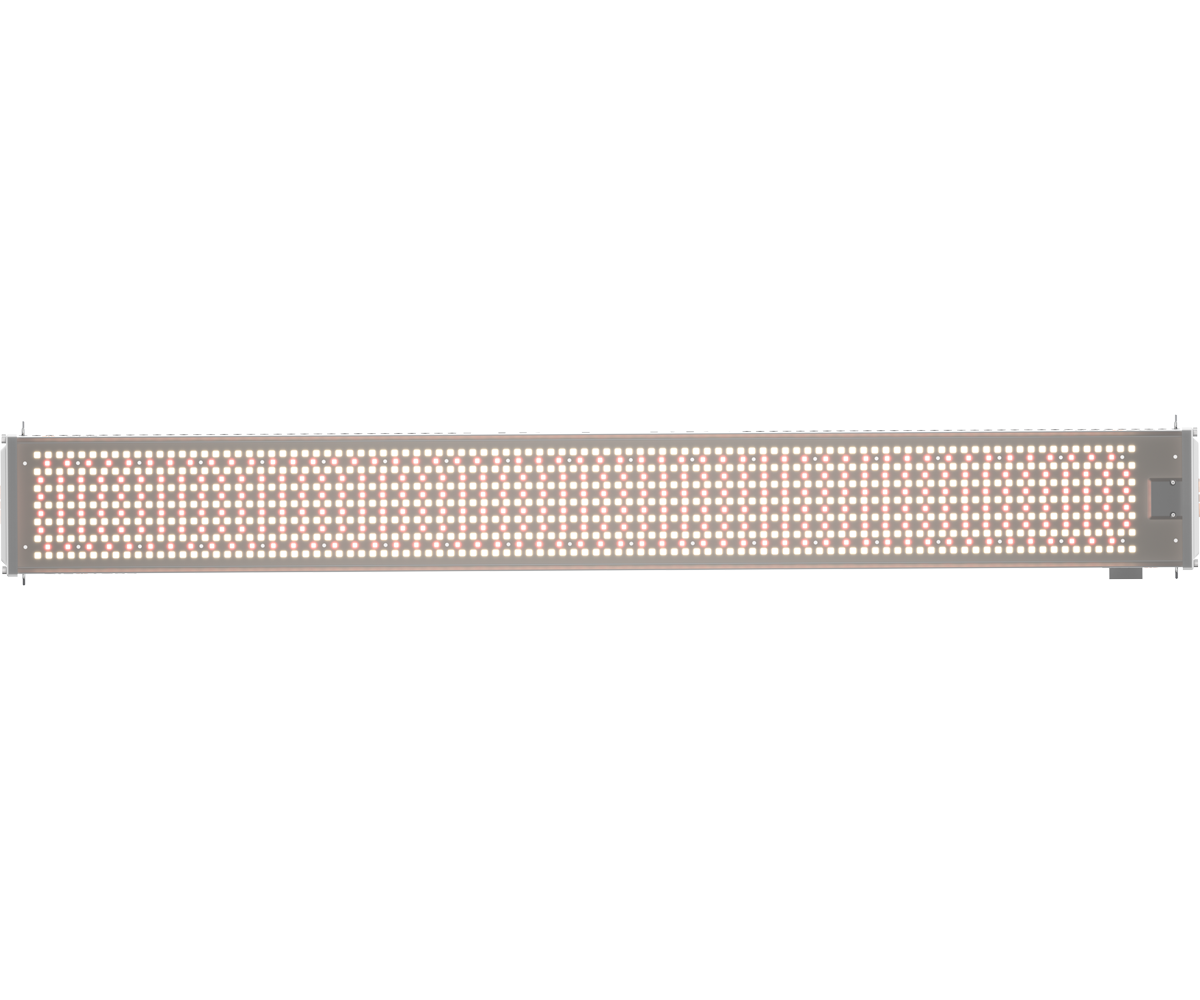

PHOTOBIO LED fixtures offer unmatched uniform distribution of high PPFD (Photosynthetic Photon Flux Density) values. This translates to deep canopy penetration and even light distribution for optimized growth. Trust PHOTOBIO•TX2 to elevate your cultivation success to new heights.
Note: PHOTOBIO TX2 WILL NOT OPERATE UNDER RESIDENTIAL 120V POWER INPUT VOLTAGE.
*Recommended consultation of a licensed electrician working with electrical engineer following applicable electrical code and inspections.
Product Features
Product Specifications
- 2400 umol/s Photosynthetic Photon Flux (400-700nm)
- 3.0 µmol/J Efficacy @ 277V
- Thin linear top light design minimizes sun interference in greenhouses while providing better canopy access when applied indoors
- Proprietary Origami-style aluminum heatsink
- Precisely control photon output when paired with Autopilot PX series controller (PX2 and above)

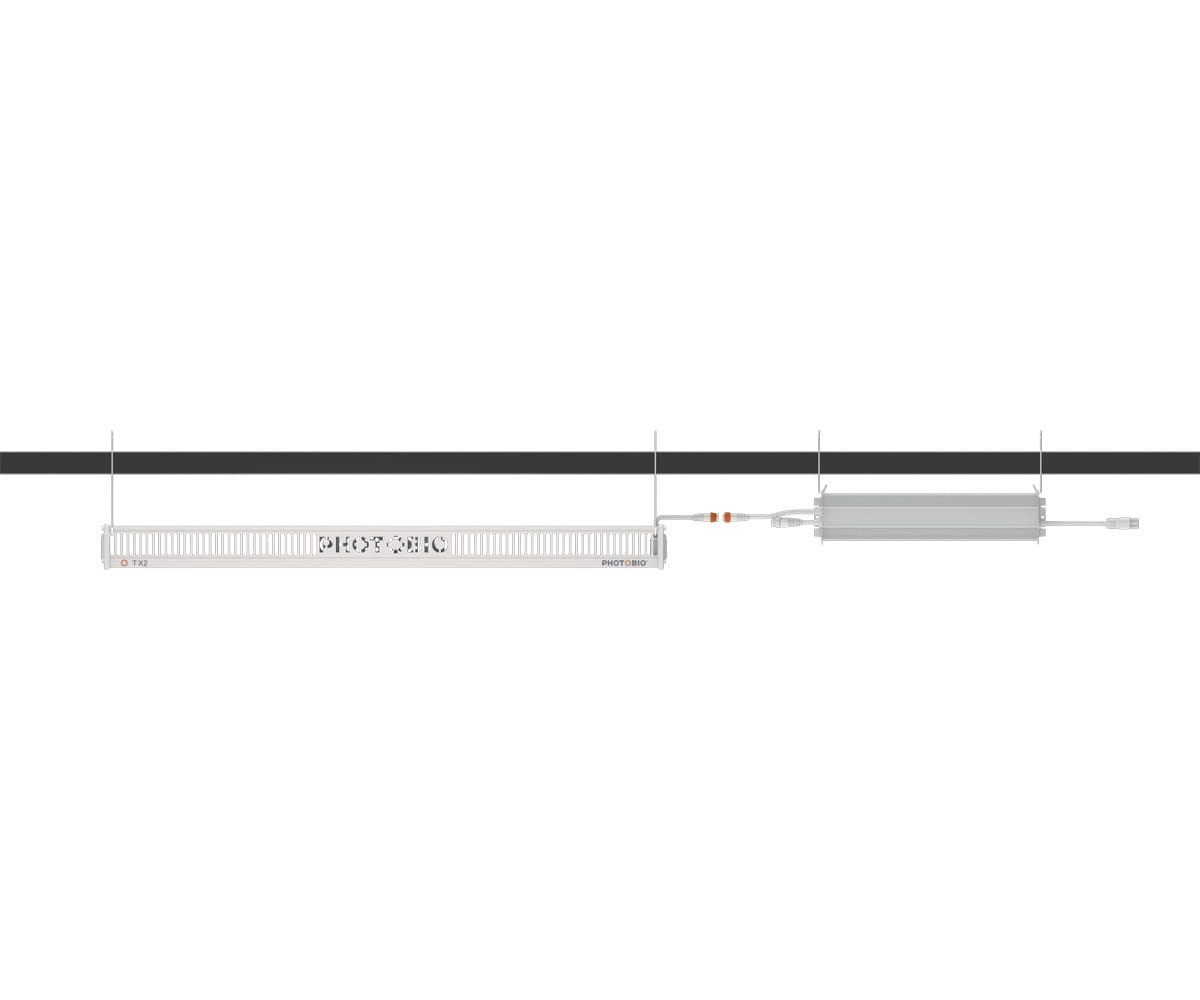

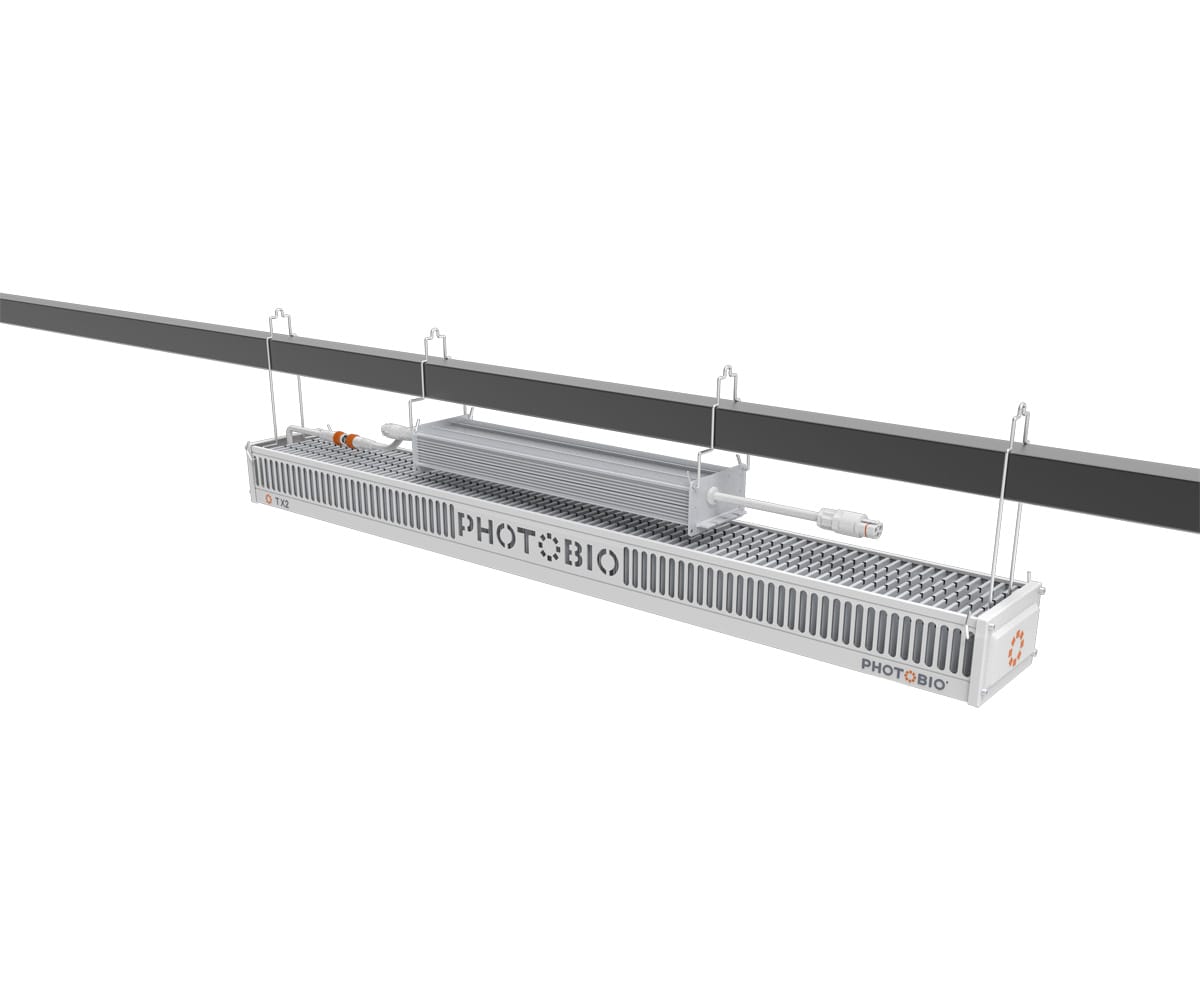

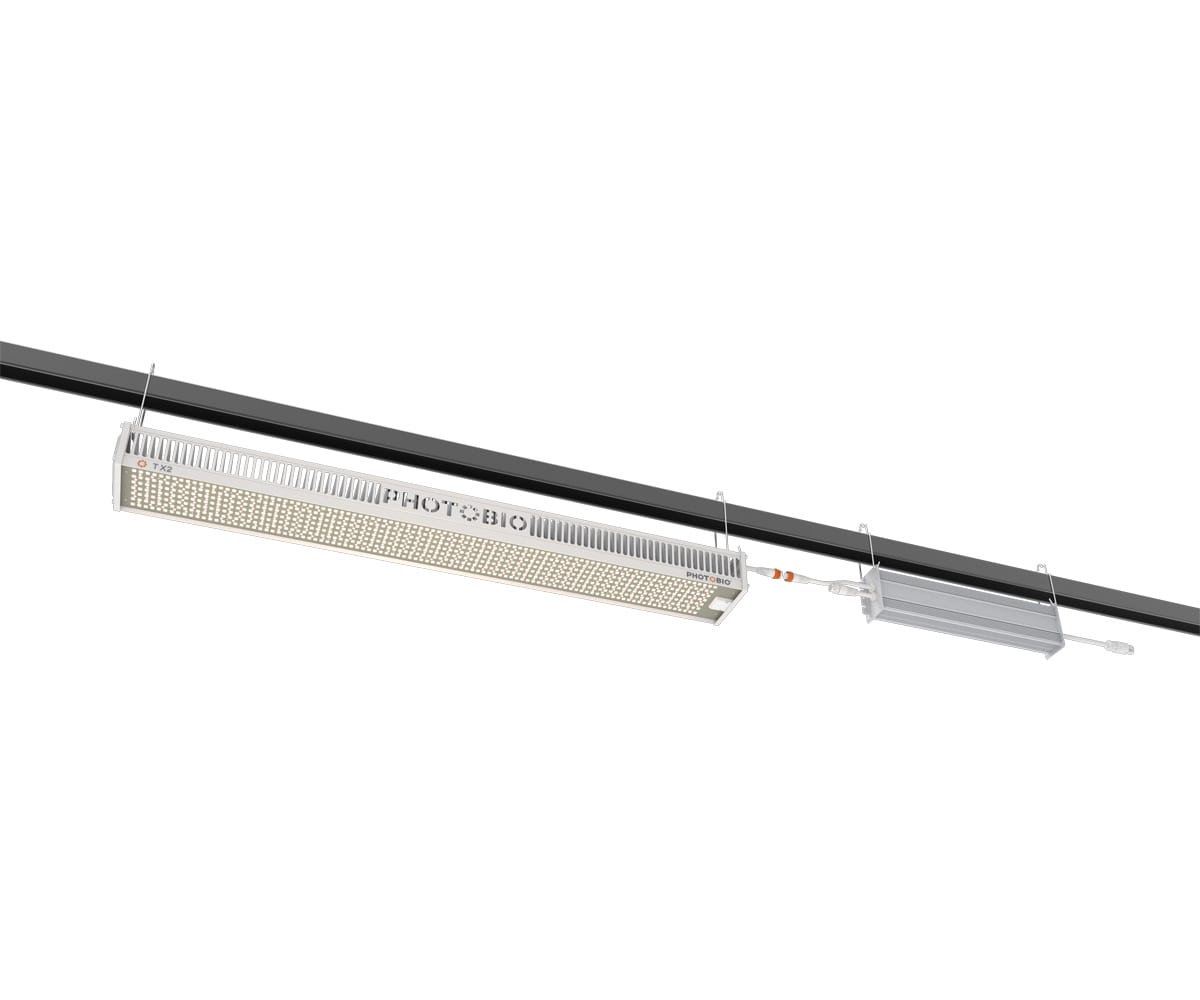

- Driver can be mounted remote
- Fully compatible with optional PHOTOBIO AC Power Distribution Tree cabling system – enables interconnection of multiple fixtures on a single power drop – reducing electrical infrastructure costs*
- Fully compatible with optional PHOTOBIO DC Communications Tree cabling system – enables interconnection of multiple fixtures on a centralized controller
S4 Spectrum
Normalized Photon Output
NEW S5 spectrum: Balanced full spectrum with enhanced red. S5 Spectrum offers a R:B Ratio at 2.6:1 while keeping the B:G ratio at 1:1. This spectrum makes it ideal for greenhouse applications as a supplemental light source.
Recommended Accessory
Autopilot PX2 Lighting Controller
Item Code: APDPX2
Professional Grow Light Accessories
The PHOTOBIO TX professional LED grow light can be controlled through a 0-10V analog signal from your master greenhouse controller, through use of our inexpensive APDX2 Controller or independently through the onboard dimming control.
- Fully compatible with optional PHOTOBIO AC Power Distribution Tree cabling system – enables interconnection of multiple fixtures on single power drop – reducing electrical infrastructure costs
- Fully compatible with optional PHOTOBIO DC Communications Tree cabling system – enables interconnection of multiple fixtures on a centralized controller
Power Harness Options
| ITEM CODE | IMAGE | TYPE | DESCRIPTION |
|---|---|---|---|
| CHE1063000W |  |  | 10′ F 16AWG WT w/ leads, Harness |
| CHE1063015W |  |  | 10′ F 16AWG WT 208–240V Plug, 6-15P, Harness |
| CHE1083020W |  |  | 10′ F 18AWG WT 277V, L7-15P, Harness |
| CHE1063021W | | | 10′ F 18AWG WT 277V, L7-15P, Harness |
Control
| ITEM CODE | IMAGE | DESCRIPTION |
|---|---|---|
| APDPX2 |  | Autopilot PX2 Advanced Lighting Controller |
